The radiograph Audit Report can be used to review the quality and justification of radiographs taken within a selected date range. It helps practices monitor whether radiographs meet acceptable standards and track who captured and developed them.
Topics Covered
Use Cases
- Monitoring radiograph Quality and Compliance
- Tracking Staff Performance and Accountability
Generate Radiograph Audit Report

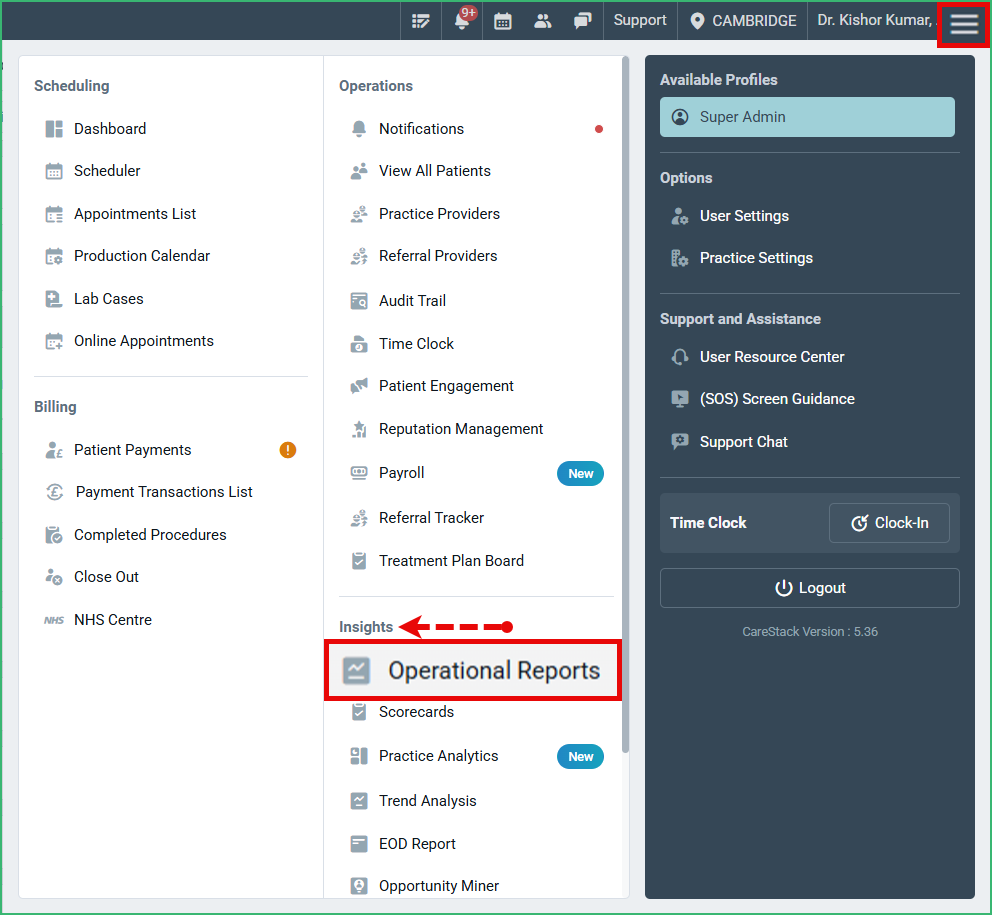

- Navigate to the System Menu > select Operational Reports under Insights.

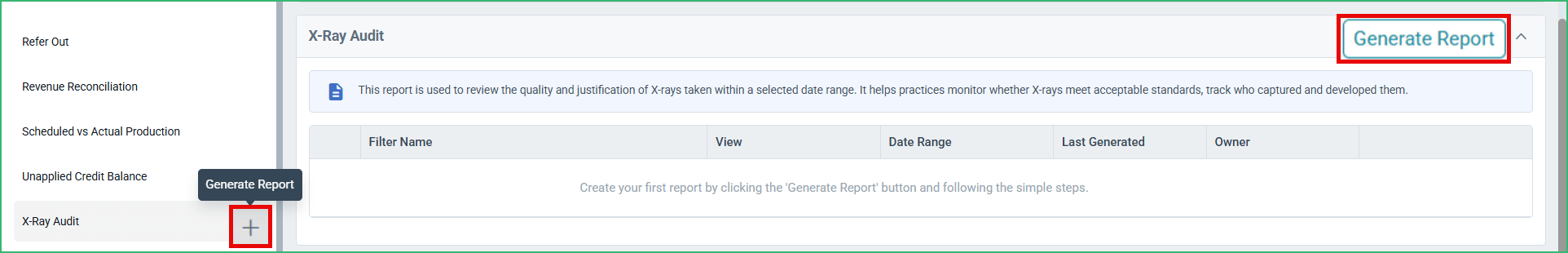

Click the + icon on the left or the Generate Report button on the right for the Radiograph Audit report.
Let's explore the filters:
| No | Filters | Description |
|---|---|---|
| 1 | Date Range* |
Use this filter to focus the report on radiograph Audits performed within the selected date range.
|
| 2 | Location* |
Use this filter to focus the report on radiographs that were done at the selected location(s).
|
| 3 | Taken By | Use this filter to focus the report on radiographs taken by the selected users. |
| 4 | Developed By | Use this filter to focus the report on radiographs developed by the selected users. |
| 5 | Radiograph Grade | Use this filter to focus the report on radiograph Grade i.e., Acceptable/Not Acceptable. |
| 6 | Group By* | Use this filter to group the summary table of the report by Location/Taken By/Developed By. |
Once you have selected the desired filters, click on the Generate button to generate your on-screen report or the Download Report As button to download your report.
Generation/Download Criteria
Due to data volume, reports with more than 5 Treatment Locations and a date range greater than 12 Months cannot be generated/downloaded.
Result
The radiograph Audit Report consists of 2 parts: A Summary section and a Details section.
The Summary section gives you an overview of the total radiograph Audits performed and their acceptance. You can also group the Summary Table by Location/Taken By/Developed By.
The Details section lists all the individual radiograph Audits that have been performed in the selected period.
Now, let's take a look at the columns in the Radiograph Audit Report:
- Radiograph Date: The date on which the radiograph was taken.
- Grade: Indicates the quality of the radiograph (e.g., Acceptable, Not Acceptable).
- Justification: The reason or justification provided for taking the radiograph.
- Taken By: The user who captured the radiograph.
- Developed By: The user who developed the radiograph.
- Code: The procedure code associated with the radiograph.
- Location: The short name of the location associated with the procedure code.
- Patient Name: The name of the patient associated with the radiograph.
- Patient ID: The system-assigned ID used to identify the patient and their records.
- Notes: Any additional notes or comments related to the radiograph audit.
Click on the blue-coloured entries to view more information on the corresponding entry.
Permissions
If users in your practice cannot use this report, please ensure that the relevant permissions are enabled.
To enable Permissions for the Radiograph Audit Report:

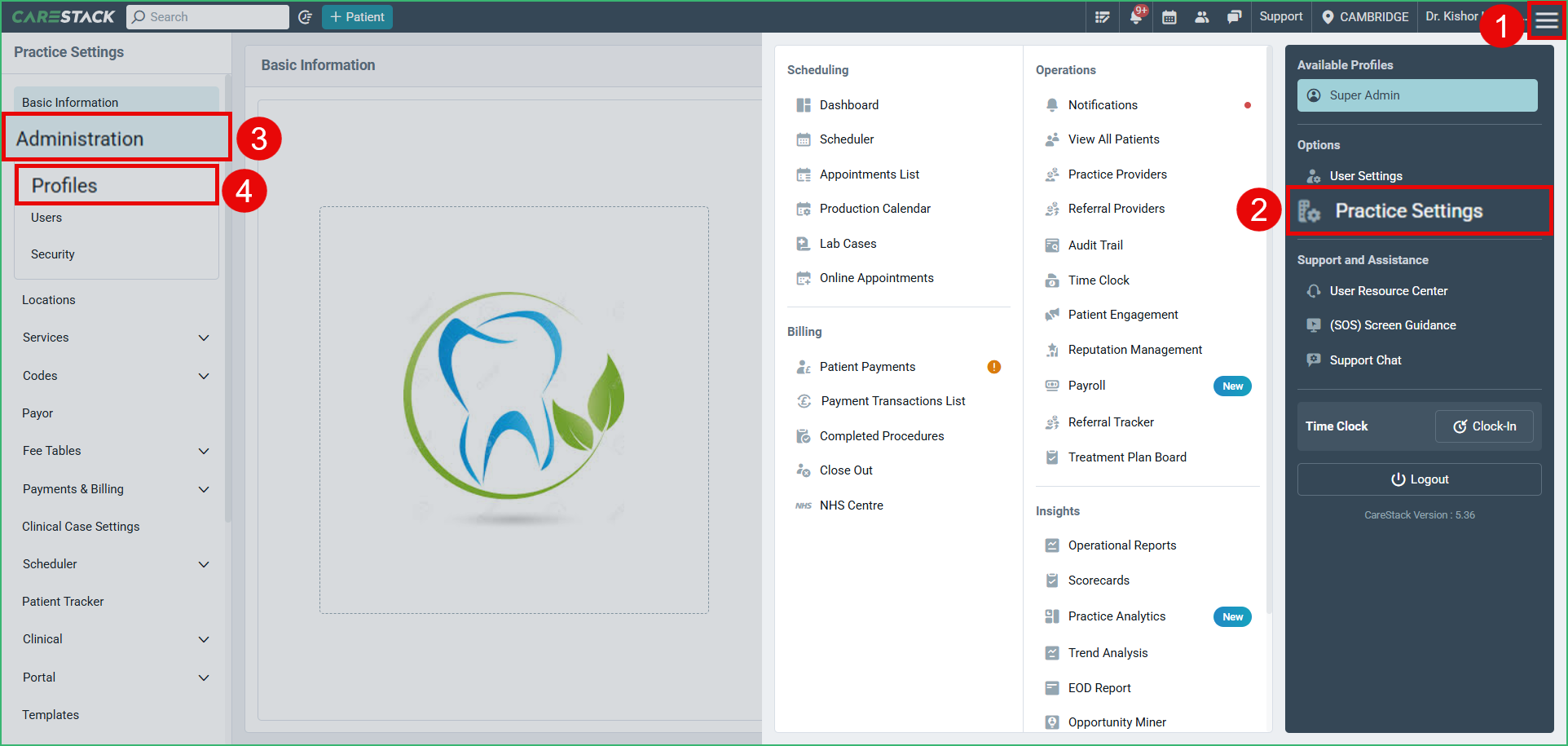

- Navigate to System Menu > Practice Settings > Administration > Profiles.

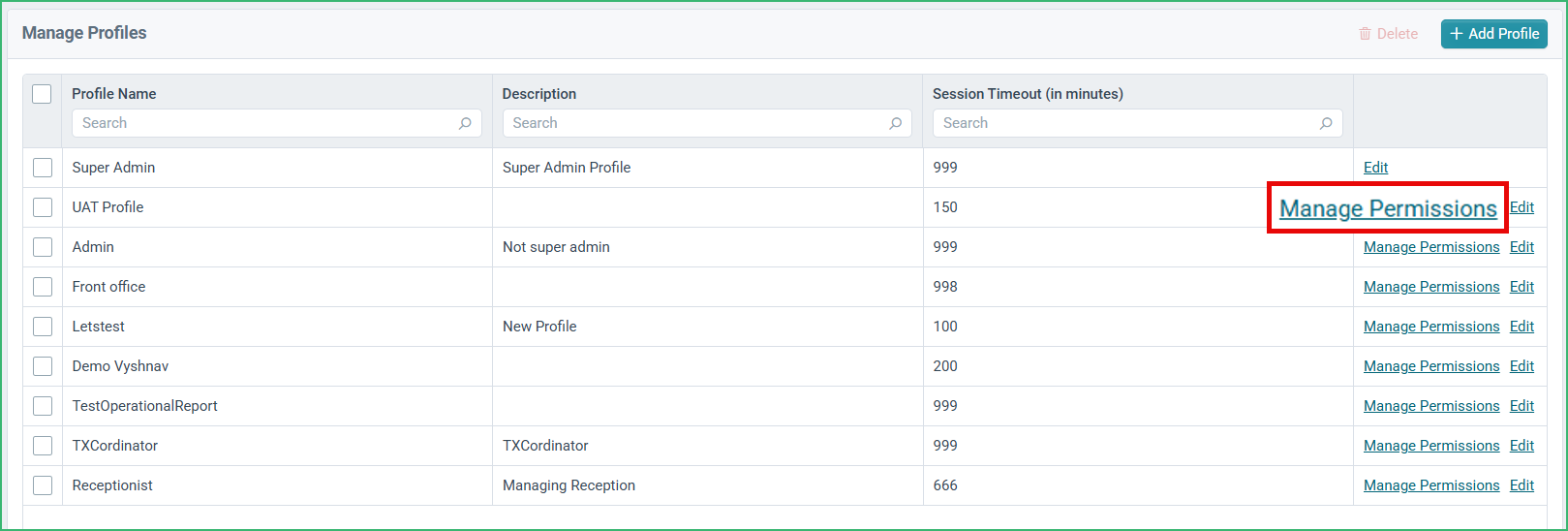

- Click Manage Permissions on the intended profile.

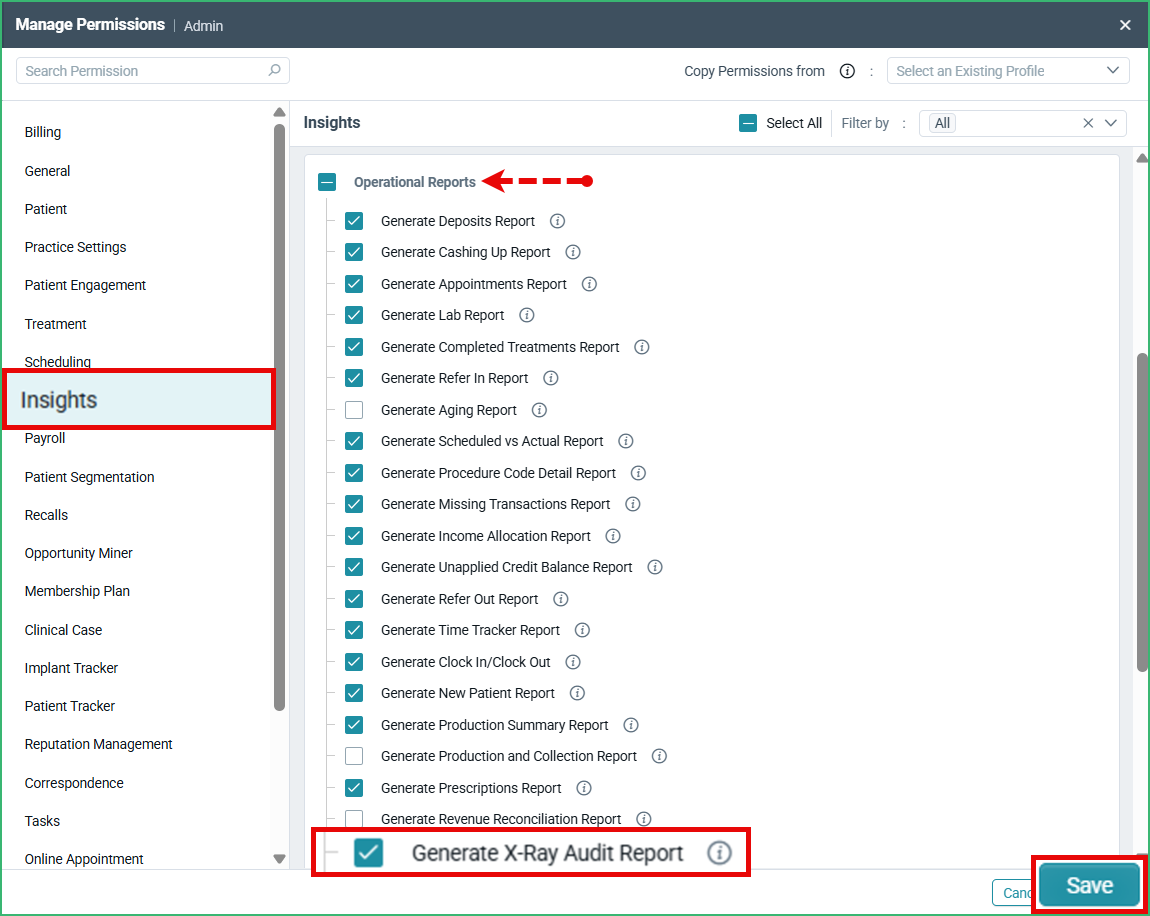

- Select Insights.
- Checkmark Generate Radiograph Audit Report under Operational Reports to enable the permission.
- Click Save.
Practices can use this comprehensive guide to efficiently generate radiograph Audit Reports, explore various use cases, and apply the necessary filter criteria to generate them. Following this guide will help you create reports quickly, understand the different views available, and customise reports to meet specific needs.
